Technical Specs

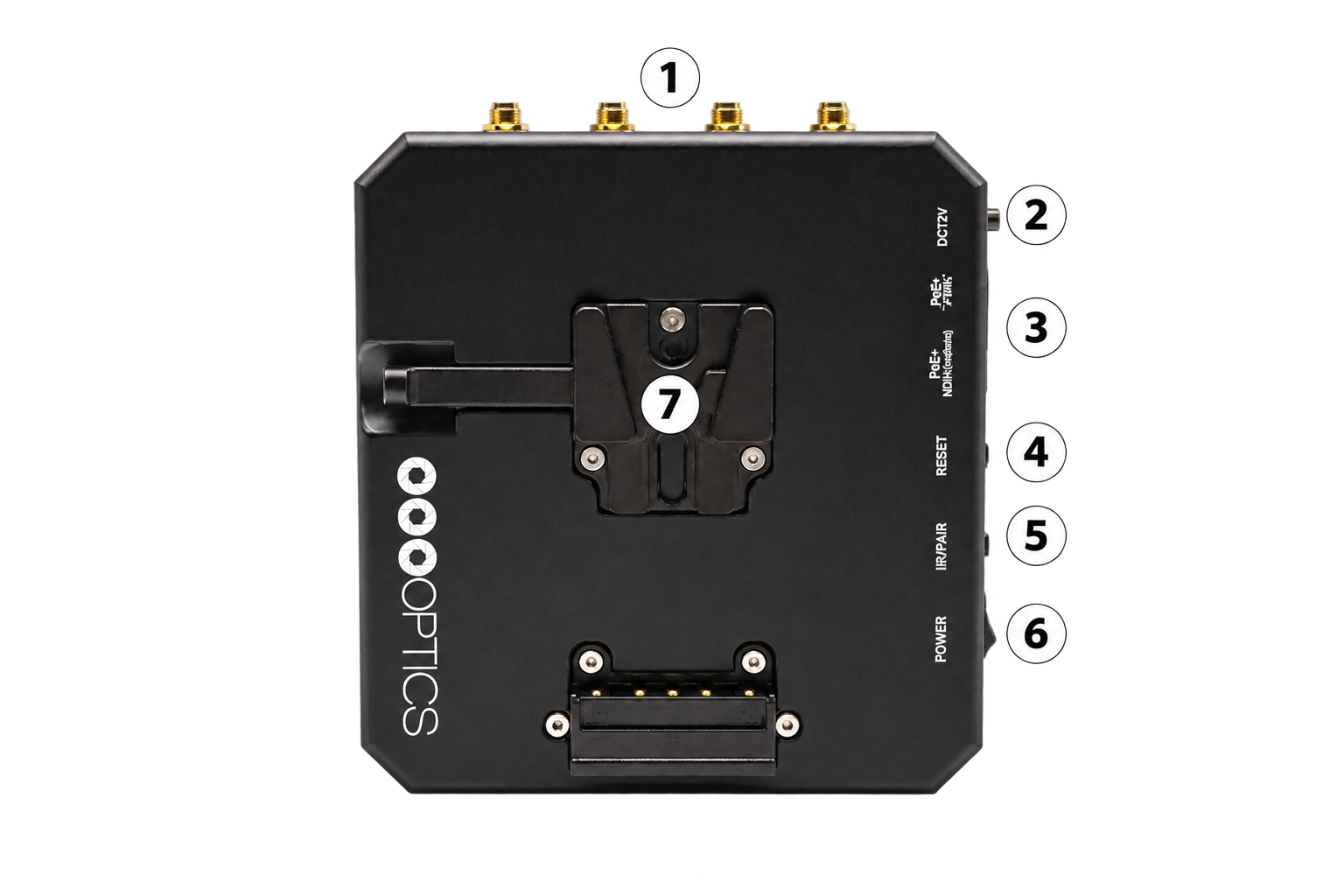

Connections
- 4 x Antenna connectors
- DC 24V Connection
- LAN / PoE+ output
- Reset button
- Status LED indicators
- Power Switch
- V-Mount battery slot
In the Box
- Power adapter and cable
- Power Link
- Universal DC24V power supply
- 4 antennas
- V-Mount battery (not included)
Transmission
| Feature | Specification |
|---|---|
| Antennas | 4x 3dBi dual-band omni-directional |
| Wireless Standard | IEEE 802.11ax/ac/a/b/g/n |
| Transmission Rate | Up to 1200 Mbps |
| Receiver Sensitivity | -98 dBm |
| Frequency | 2.412-2.472 GHz | 5.180-5.725 GHz | 5.925-7.125 GHz |
| Channel Bandwidth | 20/40/80/160 MHz, auto |
| Encryption | WPA-PSK / WPA2-PSK / WPA/WPA2 |
| Wi-Fi | Wi-Fi 6 |
Physical
| Feature | Specification |
|---|---|
| Physical Ports | RJ45 port, 24V DC port, V-Mount battery slot |
| Case | Hardened aluminum |
| PoE+ Port Standard | Up to IEEE 802.3at |
| Indicators | PWR, PoE+ output status |
| Switch | On and Off |
| Operating Temperature | -10°C to 50°C |
| Dimensions with Antennas | 7.01" L x 5.22" W x 7.43" H / 178.05mm L x 132.59mm W x 188.72mm H |
| Dimensions without Antennas | 5.83" L x 5.22" W x 1.78" H / 148.08mm L x 132.59mm W x 45.21mm H |
| Weight | 1.55 lb / 0.70 kg |
