Technical Specs
Model Information
| Feature | Value |
|---|---|
| Official SKU | PT20X-RISE-4K-BK |
| Model Name | Rise 4K |

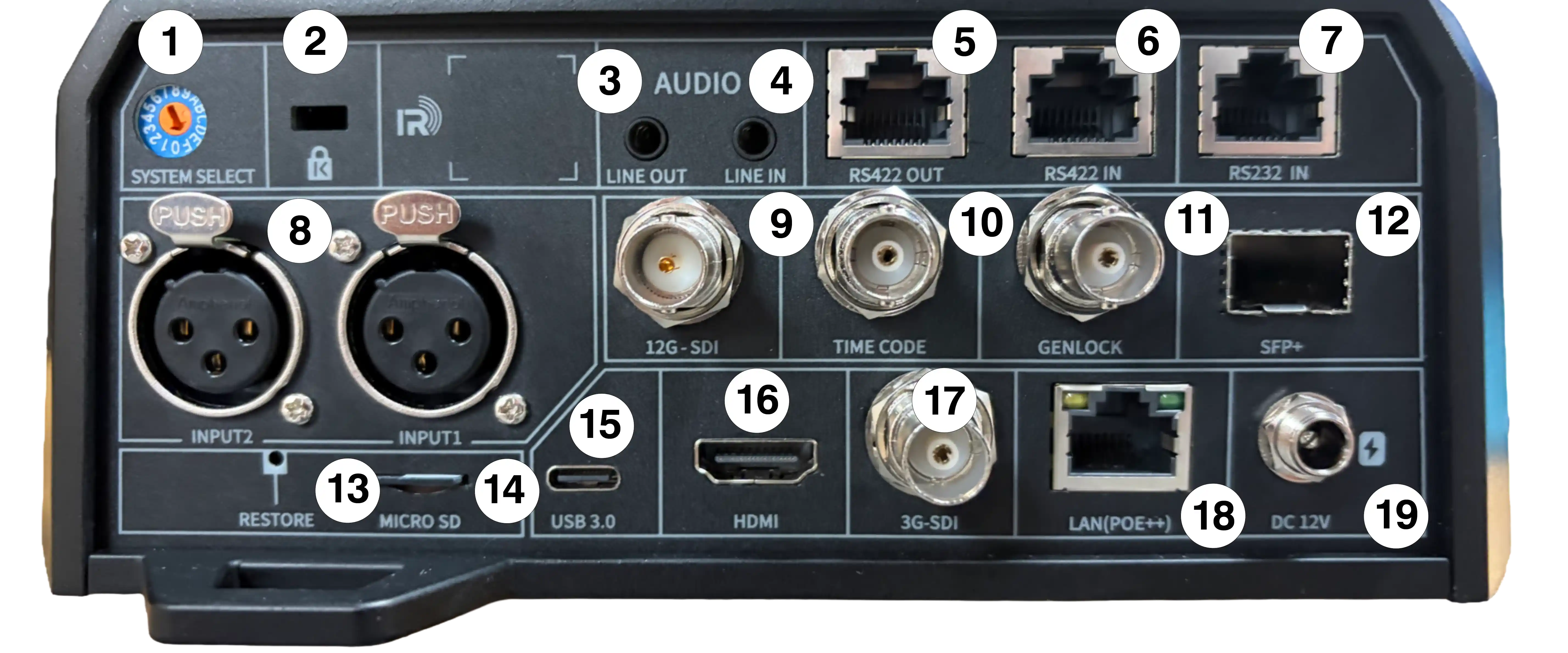

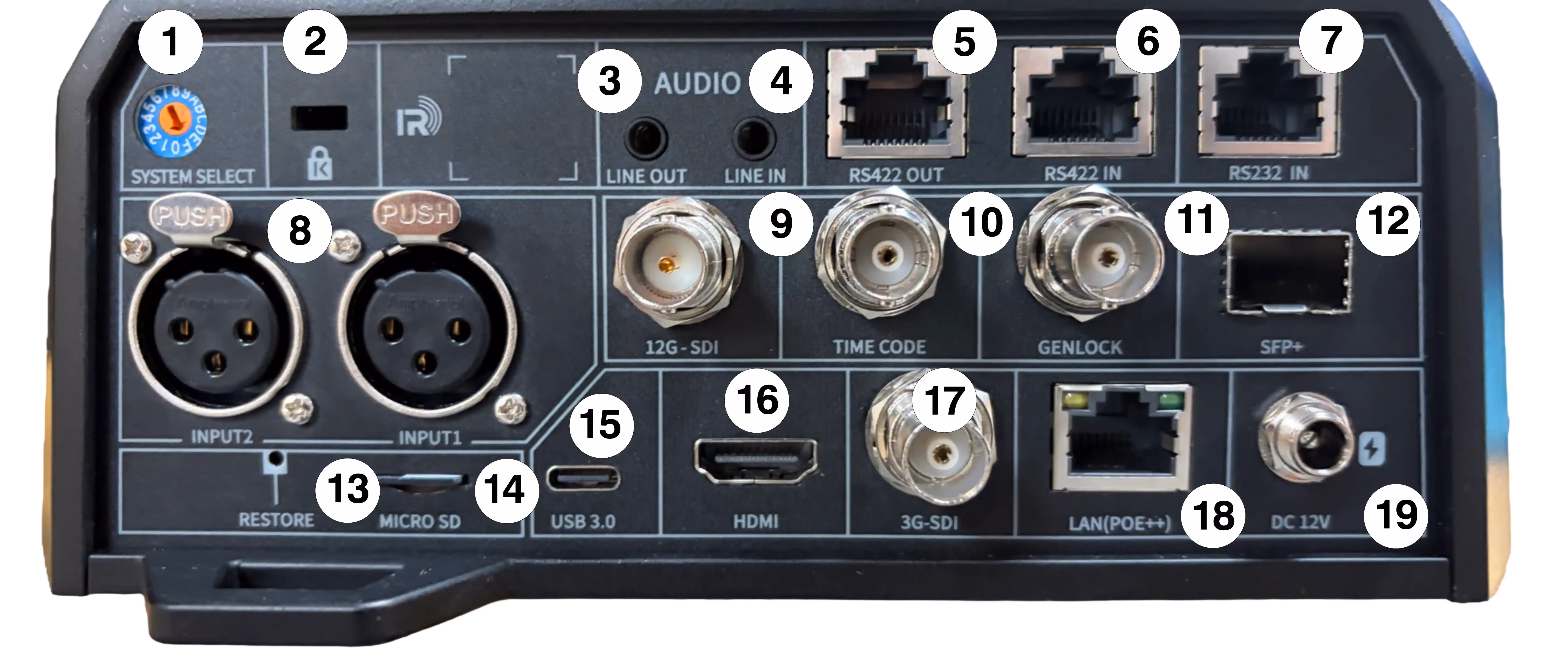

Connections
- System Select (Resolution Dial)
- Kensington lock
- Line out
- Line in
- RS422 out (RJ45)
- RS422 in (RJ45)
- RS232 in (RJ45)
- Dual XLR inputs (with 48V Phantom Power)
- 12G-SDI output
- Time code
- Genlock
- SFP+ fiber port (12G-SDI extension)
- Restore button
- MicroSD card slot
- USB 3.0 Type-C
- HDMI 2.0 output
- 3G-SDI output
- LAN (RJ45, 10/100/1000M) with PoE++
- DC 12V power
Video Formats
| Feature | Specification |
|---|---|
| Resolutions & Frame Rates HDMI / 12G-SDI | 4KP60, 4KP59.94, 4KP50, 4KP30, 4KP29.97, 4KP25, 4KP24, 4KP23.98, 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080P24, 1080P23.98, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94 |
| Resolutions & Frame Rates 3G-SDI | 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080P24, 1080P23.98, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94 |
Imaging System
| Feature | Specification |
|---|---|
| Sensor | 1 inch, CMOS, Progressive Scan, Effective Pixels: 50 million |
| Lens | 20x, f9.79mm to 186.5mm, F2.8 to F4.5 |
| Digital Zoom | 16x |
| Horizontal FoV | 70° to 4.1° |
| Vertical FoV | 41.9° to 2.3° |
| Minimum Illumination | 0.5Lux @ (F2.8, AGC ON) |
| Shutter | 1/30s to 1/10000s |
| ND (Neutral Density) Filter | Built-in (OFF, 1/4, 1/16, 1/64) |
| Image stabilization | OIS (Optical Image Stabilization) |
| OIS (Optical Image Stabilization) Operating Range | 3Hz to 8Hz |
| White Balance | Auto, Manual, Indoor, Outdoor, One Push, VAR |
| Digital Noise Reduction | 3D Digital Noise Reduction |
| SNR | ≥55dB |
| Supported Features | - Backlight Compensation- Horizontal Flip & Vertical Flip- Image Freeze |
Pan, Tilt, and Presets
| Feature | Specification |
|---|---|
| Pan range | ±172° |
| Tilt range | -30° to +120° |
| Pan Speed | 0.004°/S to 180°/S |
| Tilt Speed | 0.004°/S to 180°/S |
| Preset Positions Number | 255 |
| Preset Position Accuracy | 0.1° |
USB Specifications
| Feature | Specification |
|---|---|
| Support Operating System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
| Color Space/Compression | YUY2 / H.264 / MJPEG / H.265 |
| Video Format | YUY2: Max 1080P@30fps, H.264 AVC: Max 2160P@60fps, H.265 HEVC: Max 2160P@60fps, MJPEG: Max 2160P@60fps |
| UVC (USB Video Communication Protocol) | UVC 1.1, Supports USB Embedded Audio |
Network Video and Audio
| Feature | Specification |
|---|---|
| Video Compression | H.265/H.264/MJPEG |
| Video Stream | First stream, Second stream |
| First Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576 etc. |
| Second Stream Resolution | 720x576, 720x480, 320x240 etc. |
| Bit Rate | 32kbps to 102400kbps |
| Bit Rate Control | Variable bit rate, Fixed bit rate |
| Frequency | P50: 1fps to 50fps, P60: 1fps to 60fps |
| Audio Compression | AAC |
| Audio Bit Rate | 96Kbps, 128Kbps |
Protocols
| Feature | Specification |
|---|---|
| Control Protocols | HTTP(S), ONVIF, VISCA/Pelco-D/Pelco-P |
| Video Protocols | NDI HX3, SRT, RTSP, RTMP(S) |
| Other | FreeD |
Video and Synchronization I/O
| Feature | Specification |
|---|---|
| Video Outputs | 1x HDMI: 2.0 |
1x 12G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE2082 standard | |
1x 3G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE 424M standard | |
| Genlock | 1x BNC type，1.0Vp-p，75Ω，input only |
| Timecode | 1x BNC type，75Ω，input only |
Network, USB, and Storage I/O
| Feature | Specification |
|---|---|
| Network | 1x RJ45: 10M/100M/1000M adaptive Ethernet |
| USB | 1x USB3.0, Type-C |
| SD Card | 1 channel MicroSD |
Audio I/O
| Feature | Specification |
|---|---|
| Audio | 1x Line In, 3.5mm Audio Interface； |
1x Line Out, 3.5mm Audio Interface； | |
2x XLR Inputs (Optional 48V Phantom Power) |
Serial Control I/O
| Feature | Specification |
|---|---|
| Control Options | 1x RS232 In: RJ45, VISCA/Pelco-D/Pelco-P protocol |
1x RS485/422: RJ45, VISCA/Pelco-D/Pelco-Protocol | |
1x RS422 out: RJ45, VISCA/Pelco-D/Pelco-Protocol |
Power
| Feature | Specification |
|---|---|
| Power | JEITA type（DC IN 12V） |
| Power Over Ethernet | PoE++（IEEE 802.3bt） |
| Input Current | 5A（maximum） |
General Specifications
| Feature | Specification |
|---|---|
| Installation | Normal and Inverted |
| Tally Light | 3x (Bi-color, Red and Green) |
Environmental and Physical Specifications
| Feature | Specification |
|---|---|
| Working Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 60°C |
| Dimension | 205mm x 237mm x 272mm (8.07" × 9.33" × 10.71") |
| Net weight | 4.8KG (10.58 lbs) |
Certifications
- CE-EMC
- CE-LVD
- FCC
- REACH
- RoHS
- UKCA
- NDI HX3 (Pending Certification)
Compliance
- The Rise 4K is NDAA Compliant.
- Covered by one or more claims of the HEVC patents listed at patentlist.accessadvance.com
